Grid-Scale Battery Storage: How Utilities Are Storing Renewable Energy at Massive Scale

Why the Grid Needs Batteries

Electricity has always been a use-it-or-lose-it commodity. Power plants generate it, the grid transmits it, and customers consume it — all simultaneously. For most of the 20th century, that wasn't a serious problem because thermal power plants could ramp up or down to match demand. The rise of solar and wind changed the equation. Neither can be throttled on demand. When the sun shines or the wind blows, the grid gets power whether it needs it or not. When they stop, the grid doesn't.

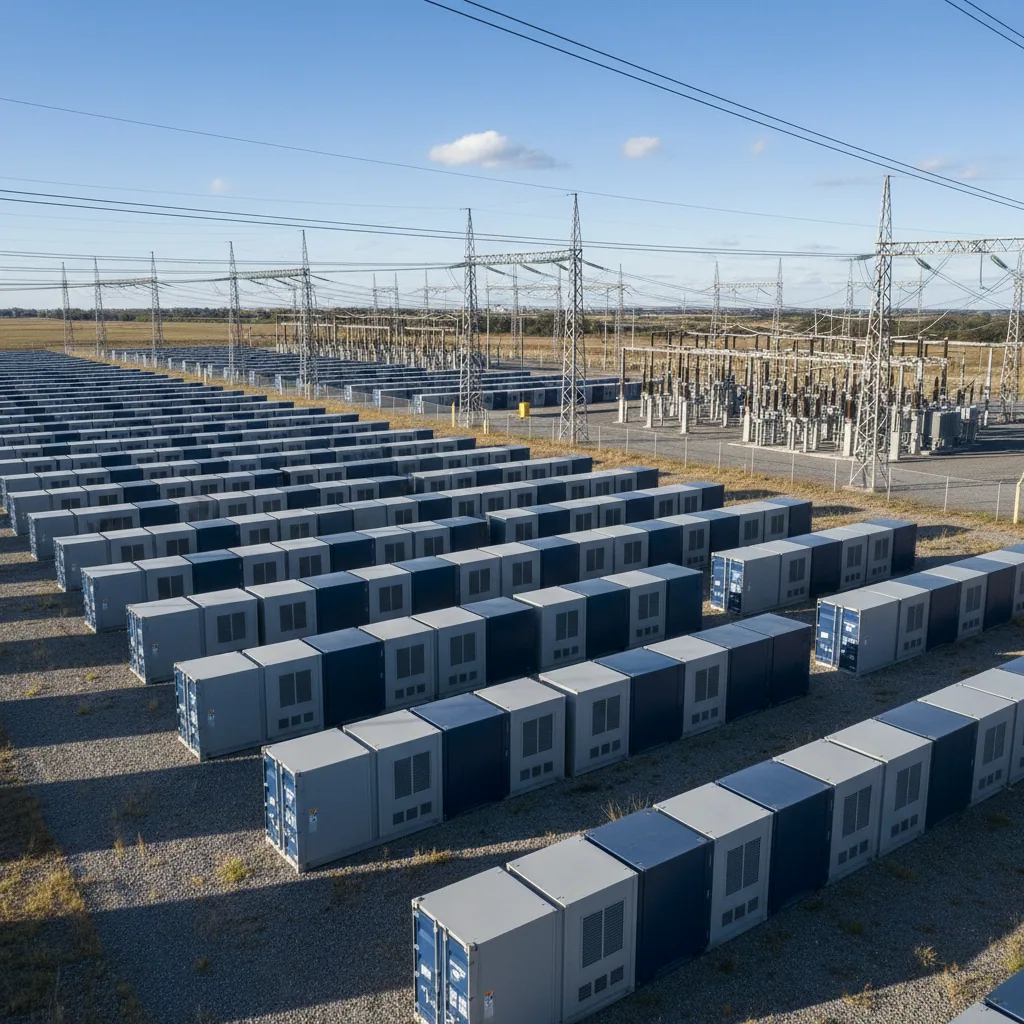

Batteries fix this mismatch. They absorb excess generation, store it, and discharge it when demand peaks or when renewable output drops. At grid scale, that means systems storing hundreds of megawatt-hours — enough to power tens of thousands of homes for hours at a time.

The US had about 16 gigawatts (GW) of grid-scale battery storage installed as of 2024. Federal and state policy targets push that toward 100 GW by 2030. Whether that timeline holds is debatable, but the direction is clear: battery storage is becoming a core part of grid infrastructure, not an experiment.

Battery Technologies at Grid Scale

Lithium Iron Phosphate (LFP)

Lithium iron phosphate is now the dominant chemistry for new grid-scale installations, and for good reasons. Compared to other lithium-ion variants, LFP runs cooler, tolerates more charge-discharge cycles before degrading, and is significantly safer — the iron-phosphate bond is chemically stable in ways that nickel-manganese-cobalt (NMC) chemistry is not. LFP cells don't undergo thermal runaway as easily, which matters enormously when you're stacking thousands of cells in an outdoor enclosure next to homes and businesses.

Cost in 2025 runs approximately $250–$350 per kilowatt-hour at the system level for new grid-scale LFP installations. That figure has been falling at roughly 15% per year, driven by Chinese manufacturing scale and improving cell design. Most utility-scale batteries deployed in the US today are LFP.

Vanadium Redox Flow Batteries

Flow batteries store energy in liquid electrolyte tanks rather than solid cells. Vanadium redox flow batteries (VRFBs) have one significant advantage: their energy capacity is independent of their power output. Want more storage? Add bigger tanks. Want more power? Add more electrochemical stacks. This modularity makes them attractive for long-duration applications.

VRFBs also last longer than lithium-ion — 20-plus years of cycling without meaningful capacity degradation is achievable. The trade-off is cost: they're currently more expensive per kilowatt-hour than LFP, and the energy density is lower, meaning they need more physical space. They're being deployed in projects where duration and longevity matter more than upfront cost.

Sodium-Ion: The Emerging Challenger

Sodium-ion batteries use the same basic architecture as lithium-ion but replace lithium with sodium — an element roughly 1,000 times more abundant in Earth's crust. CATL, the world's largest battery manufacturer, began commercial sodium-ion production in 2023. The chemistry is still maturing, but sodium-ion could eventually compete with LFP on cost while using more globally distributed raw materials.

The Moss Landing Fire: What Happened and What It Means

On January 16, 2025, a fire broke out at the Elkhorn Battery facility at the Moss Landing Power Plant in Monterey County, California. Elkhorn was the largest battery storage facility in the world at the time — 400 megawatts / 1,600 megawatt-hours of LFP battery capacity installed by Vistra Energy. The fire burned for days, forced evacuation of nearby residents, and released toxic gases that prompted health advisories.

This incident created genuine concern in the battery storage industry and among regulators. A few important points about what it means for grid-scale LFP safety:

LFP is more thermally stable than other lithium-ion chemistries, but it is not fireproof. When LFP cells fail — through external damage, cooling system failure, or manufacturing defects — they can still enter thermal runaway, and once a fire starts in a densely packed battery array, it is extremely difficult to suppress. Water doesn't work well; firefighters at Moss Landing let sections burn out rather than risk injury.

The incident accelerated regulatory scrutiny of battery storage siting, particularly near populated areas. California's Public Utilities Commission and the state fire marshal began developing stricter setback requirements and fire suppression standards for large battery installations. The broader lesson is that LFP's safety advantages are real but relative — large-scale battery installations still require serious fire protection engineering, not just the assumption that LFP is inherently safe.

The Duration Gap: Four Hours Isn't Enough

Most grid-scale batteries installed today provide four hours of storage at their rated power output. A 100 MW / 400 MWh battery system can discharge 100 MW for four hours, then it's empty. For managing the duck curve — absorbing midday solar surplus and discharging it into the evening demand peak — four hours is workable. For providing backup power through multi-day weather events or seasonal mismatches between renewable generation and demand, it's nowhere near enough.

Analysts call this the duration gap. Fully integrating variable renewables at high penetration levels requires 10 to 100-plus hours of storage. No single technology currently meets that need economically at scale.

Long-Duration Storage Technologies

Pumped Hydro

Pumped hydroelectric storage currently accounts for over 90% of all grid energy storage in the US — roughly 22 GW of capacity. It's proven, efficient (70–85% round-trip), and can operate for 50 to 100 years. The problem is geography: pumped hydro needs two water reservoirs at different elevations, and most good sites in the US are already developed or environmentally restricted. New closed-loop designs that don't require rivers are getting more regulatory traction, but permitting still takes a decade or more. For a deeper look at this technology, see the full guide to pumped hydro storage.

Iron-Air Batteries: Form Energy's Approach

Form Energy, a Massachusetts-based startup, is developing iron-air batteries targeting 100-hour discharge duration. The chemistry is simple: iron rusts (oxidizes) to discharge electricity, and the rust is reversed (reduced) during charging. Iron is one of the cheapest materials on Earth, which is why Form Energy claims cost targets below $20/kWh — less than a tenth of current lithium-ion system costs.

Form Energy commissioned its first commercial pilot in Minnesota with Great River Energy in 2023. The technology is real, but scaling from a pilot to hundreds of gigawatt-hours of deployment is a long road. Watch this space, but don't count on iron-air batteries as a near-term grid solution.

Compressed Air and Thermal Storage

Compressed air energy storage (CAES) pumps air underground at high pressure when power is abundant, then releases it through turbines when power is needed. Existing CAES plants in McIntosh, Alabama and Huntorf, Germany have operated for decades. New "adiabatic" designs improve efficiency by storing heat from compression separately, then returning it during expansion.

Cost Trends and What to Expect

Grid-scale lithium-ion battery costs have fallen from over $1,000/kWh in 2010 to roughly $250–$350/kWh in 2025. The trajectory follows a learning curve similar to solar panels: roughly 15% cost reduction for each doubling of cumulative installed capacity. If deployment targets hold, costs could fall to $150–$200/kWh by 2030 for four-hour systems. Long-duration technologies need to reach $20–$50/kWh to be cost-competitive with alternative sources of firm capacity.

These cost trends affect homeowners too. Home battery systems follow the same underlying technology curves. As grid-scale LFP costs fall, the price premium for residential battery storage should narrow over the next several years.
